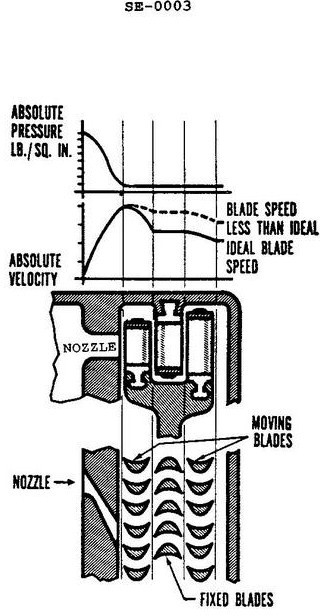

How many Curtis stages are contained in the turbine shown in the illustration? Illustration SE-0003
Official USCG Answer & Rule Citation
Correct Answer: Option A — 1
The illustration depicts a single set of nozzles followed by two rows of moving blades separated by a fixed reversing blade row, defining exactly one Curtis velocity-compounded stage.
