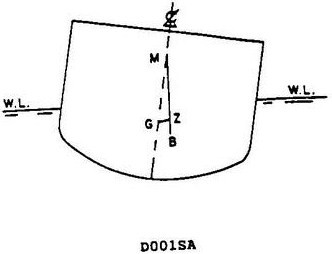

In illustration D001SA below, which item represents the righting arm?

Correct Answer: Option A — GZ

In naval architecture, GZ represents the righting arm, which is the horizontal distance between the center of gravity (G) and the center of buoyancy (B) when the vessel is inclined. It is the primary lever arm that generates the righting moment to return the vessel to an upright position.
