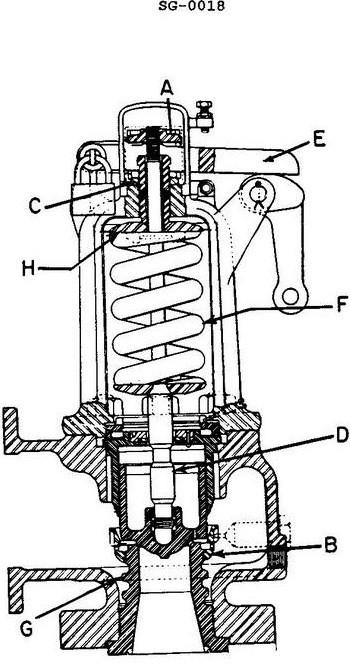

Referring to the illustrated huddling-chamber safety valve, what statement concerning the blow down adjusting ring (B) is true? Illustration SG-0018

Correct Answer: Option D — Raising the blow down adjusting ring further increases the area of exposure to pressure after the valve pops and as a result, the valve blow down will increase.

The blowdown ring controls the huddling chamber pressure. Raising the ring increases the area exposed to steam pressure after the valve pops. This creates a larger downward force against the spring, requiring a greater drop in boiler pressure before the valve reseats, thereby increasing the blowdown interval.
