Steam Plants (Boilers & Turbines) USCG Question #794 (Set 27)

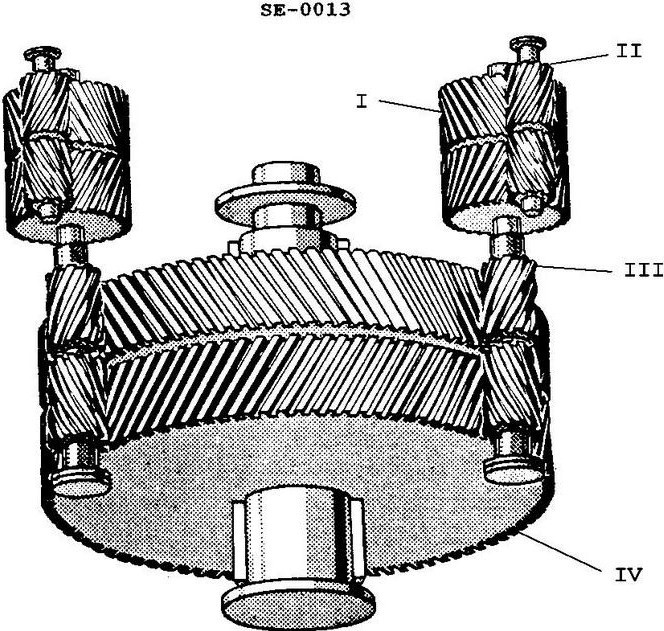

The component labeled "II", as shown in the illustration, is called the __________. Illustration SE-0013

USCG Exam Illustration SE-0013
USCG Examination Diagram: Illustration SE-0013
Official USCG Answer & Rule Citation

Correct Answer: Option D — high speed pinion

High-speed pinions mesh directly with the first reduction gear elements in articulated or locked-train double reduction systems, receiving high-RPM torque from the turbine flexible couplings and transmitting it down through the gear train.
