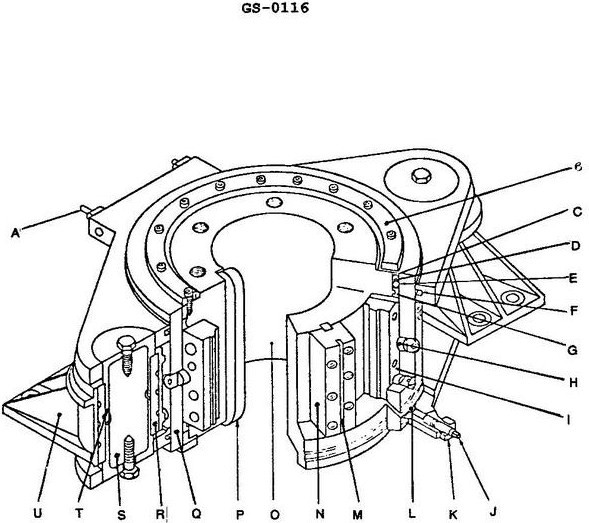

The device shown in the illustration is a/an __________. GS-0116

Correct Answer: Option A — vane type steering gear

The illustration depicts a rotary vane steering gear, characterized by a rotor with vanes inside a stationary housing. Hydraulic pressure applied to the vanes creates torque to move the rudder. This design is compact and eliminates the need for rams and crossheads, commonly found on modern commercial vessels.
