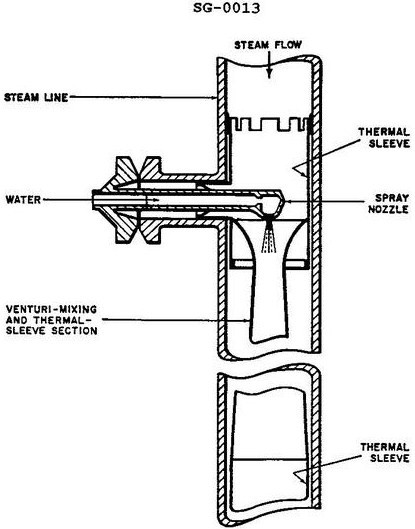

The device shown in the illustration is a/an __________. SG-0013

Correct Answer: Option B — desuperheater

Desuperheaters reduce the temperature of superheated steam by passing it through water-cooled coils or direct water injection, supplying lower-temperature auxiliary steam safely to shipboard hotel and machinery systems.
