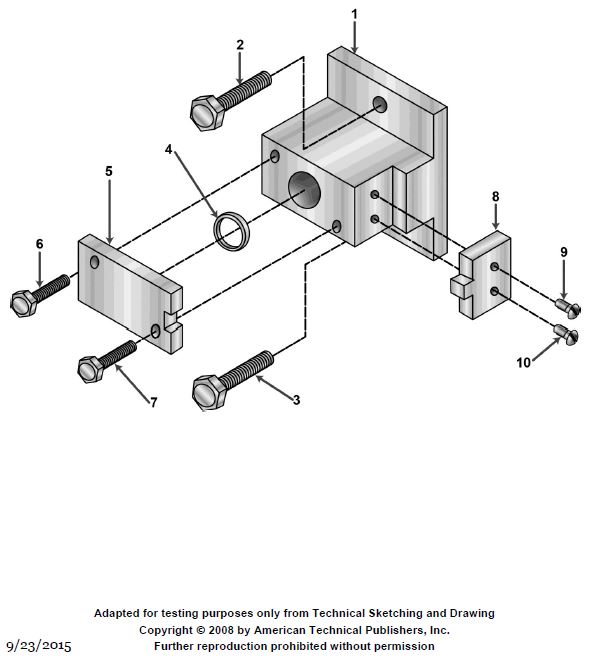

The exploded drawing shown in the illustration is intended to show the __________. Illustration GS-0025

Correct Answer: Option B — parts aligned for the correct order of reassembly

Exploded drawings are technical illustrations that show the components of an assembly separated by distance but aligned along their axes of assembly. This format is essential for maintenance manuals, as it clearly demonstrates the correct order and orientation for reassembling complex machinery, preventing errors during shipboard repairs.
