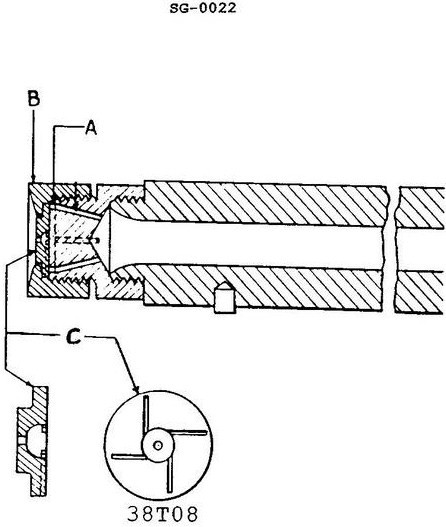

The illustrated burner atomizer assembly is __________. Illustration SG-0022

Correct Answer: Option D — straight mechanical

Straight mechanical atomizers rely solely on high fuel pressure forced through tangential slots into a whirling chamber to produce centrifugal atomization without auxiliary steam or air. This design operates effectively at constant pressures, though turndown ratios are inherently limited compared to steam-assisted or return-flow variants.
