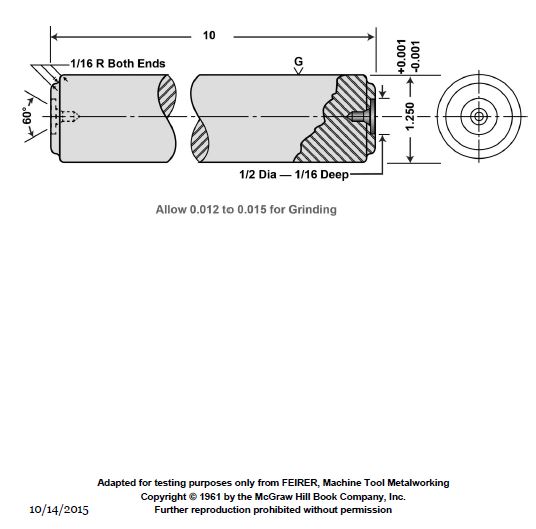

The illustration shown represents a blueprint of a metal __________. Illustration GS-0028

Correct Answer: Option A — rod with a conventional break

The conventional break symbol, characterized by the 'S' shape or jagged lines on a cylindrical object, indicates that a portion of the length has been removed for drawing efficiency. This allows long, uniform parts like rods or shafts to be represented on smaller sheets without losing critical dimensional data.
