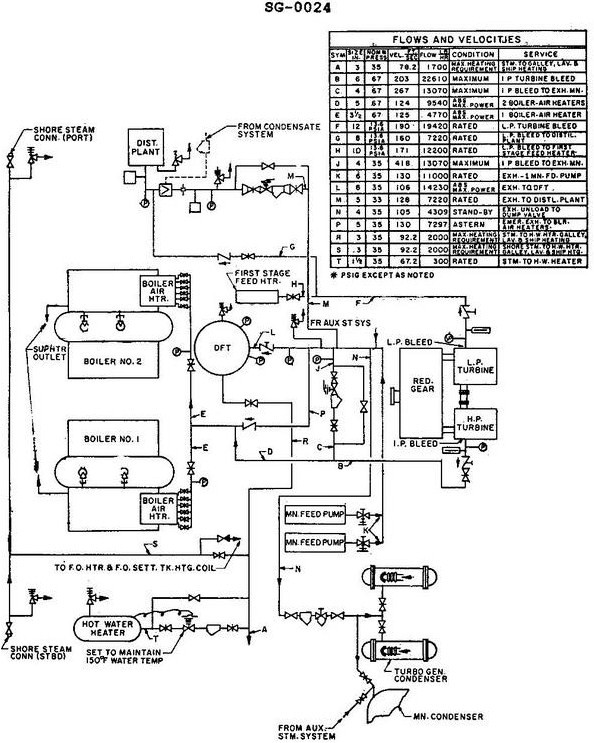

The intermediate pressure bleed steam system, shown in the illustration, is used to supply steam at approximately __________. SG-0024
Official USCG Answer & Rule Citation
Correct Answer: Option C — 67.0 psig
Standard marine intermediate pressure bleed steam systems extract from turbine expansion stages at approximately 67.0 psig to supply auxiliary equipment, evaporators, and the deaerating feed tank.
