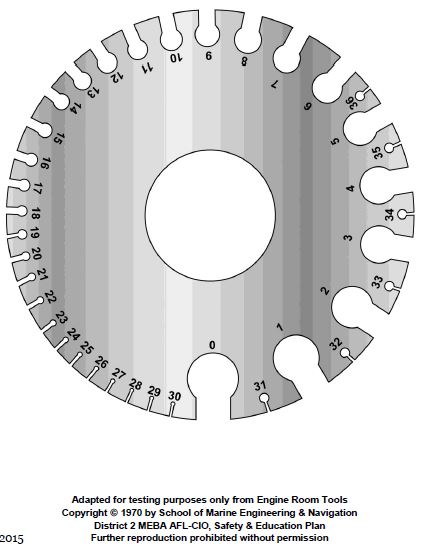

The purpose of the instrument illustrated is to __________. Illustration GS-0079

Correct Answer: Option C — measure wire diameter

The illustrated device is a wire gage, specifically designed to measure the diameter of solid wire. By inserting the wire into the various slots, the user identifies the American Wire Gauge (AWG) size, which is critical for selecting appropriate electrical conductors for shipboard power and lighting circuits.
