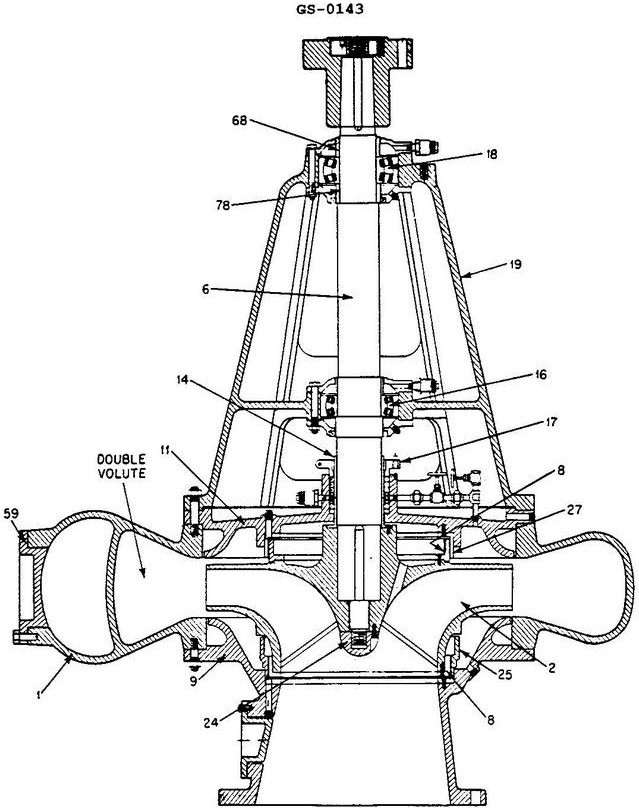

The shaft sleeve for the pump illustrated is identified by the item numbered as __________. Illustration GS-0143

Correct Answer: Option A — 14

Item 14 represents the shaft sleeve, a replaceable component designed to protect the pump shaft from wear caused by the packing or mechanical seal. In centrifugal pump maintenance, replacing the sleeve is more cost-effective than replacing the entire shaft when erosion or scoring occurs at the stuffing box.
