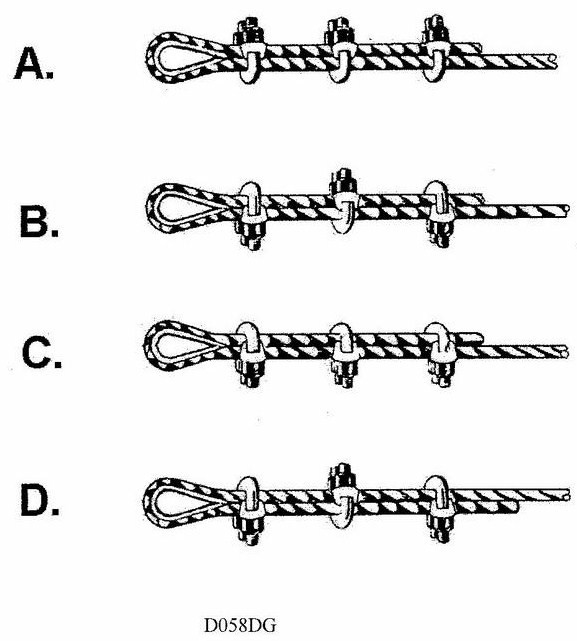

Using illustration D058DG below, which of the figures is the preferred method of forming a temporary eye splice using wire rope clips?

Correct Answer: Option C — C.

Proper wire rope clip installation requires the U-bolt to bear against the dead end (bitter end) of the rope, while the saddle bears against the live (standing) part. This prevents the U-bolt from crushing the load-bearing strands of the standing part, maintaining the rope's rated breaking strength.
