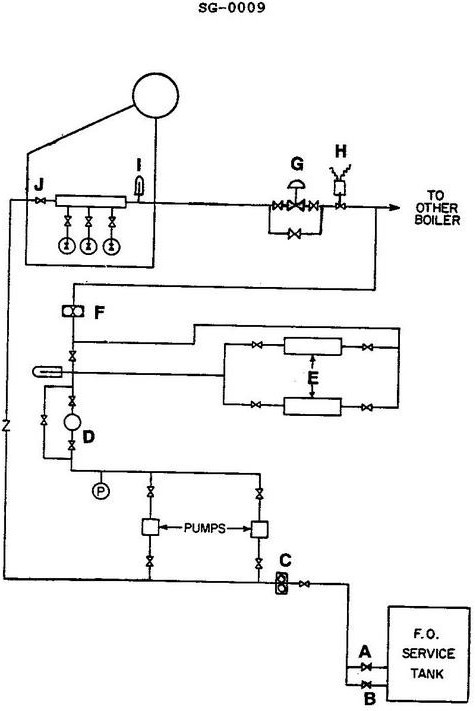

Valve "H" shown in the illustration, functions to __________. Illustration SG-0009

Correct Answer: Option A — provide a quick shut off of fuel to the boiler

Quick-closing fuel shut-off valves in the burner supply line provide immediate isolation of fuel flow to the furnace during emergency conditions or flame failure trips. Title 46 CFR mandates rapid shut-off mechanisms to prevent catastrophic fuel accumulation and furnace explosions within marine propulsion boilers.
