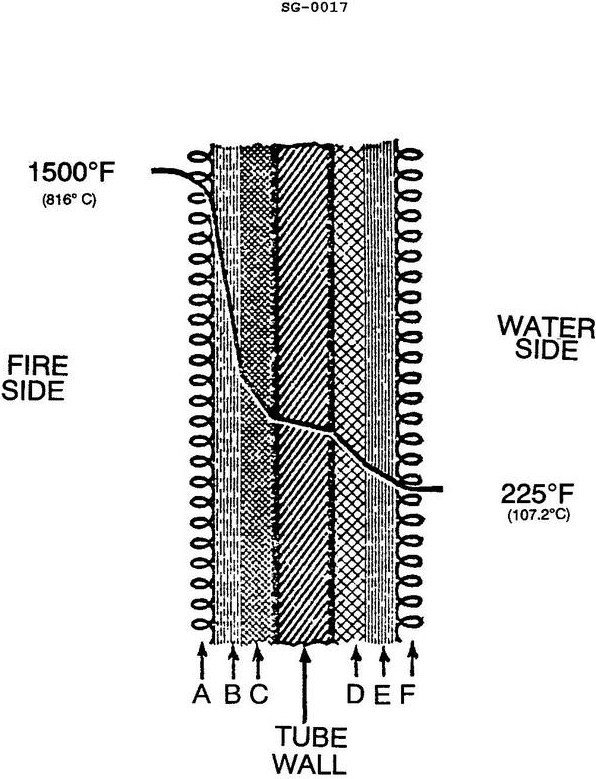

Which area shown in the illustration will offer the most resistance to heat transfer from the fireside to the waterside of a boiler tube? SG-0017

Correct Answer: Option D — B

The stagnant gas film and internal fireside soot or scale deposits on the tube exterior offer the highest thermal resistance to heat transfer, severely impeding heat flow compared to metal walls and turbulent water inside.
