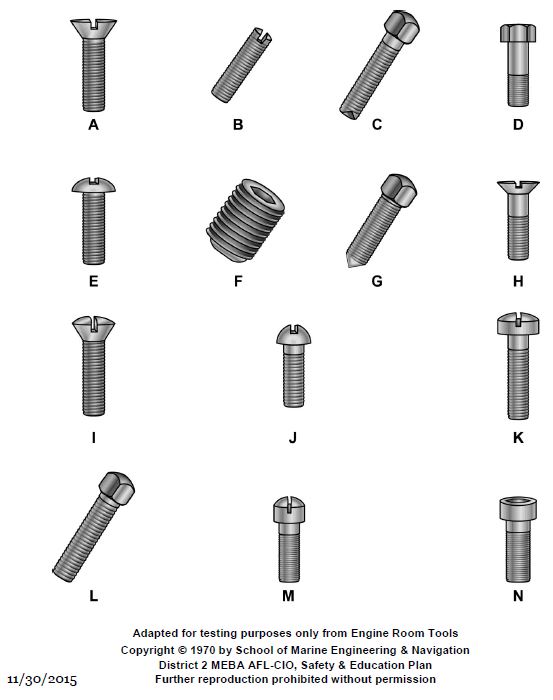

Which of the figures illustrated is not suitable for use as a hex head set screw? Illustration GS-0080

Correct Answer: Option D — figure D

Figure D represents a set screw with a configuration unsuitable for standard hex head applications. In mechanical engineering, set screws must provide adequate surface contact and locking capability. Figure D lacks the necessary head geometry required for proper torque application and secure fastening in rotating machinery or shaft assemblies.
