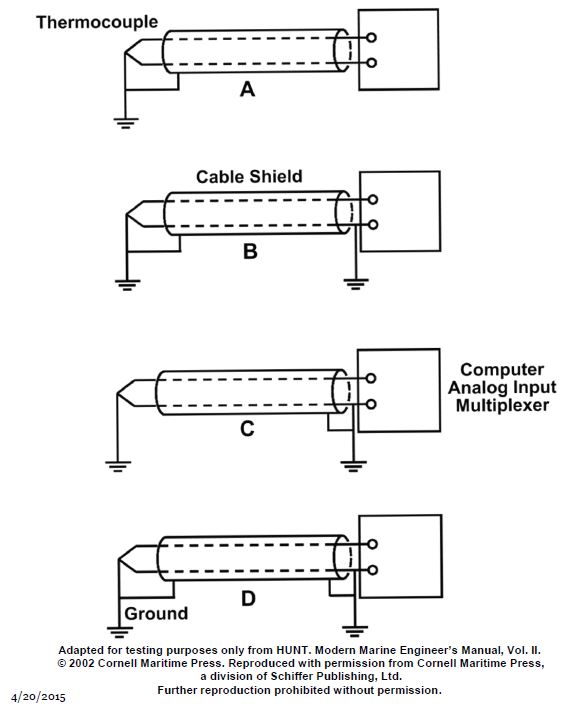

Which of the following illustrations represents the proper method of circuit grounding for a low level analog signal cable? Illustration EL-0124

Correct Answer: Option A — A

Proper grounding of low-level analog signal cables is vital to prevent electromagnetic interference and ground loops. Illustration A demonstrates the correct single-point grounding technique, which ensures the shield drains noise to the ground without creating a current path through the signal conductors themselves, maintaining signal integrity.
