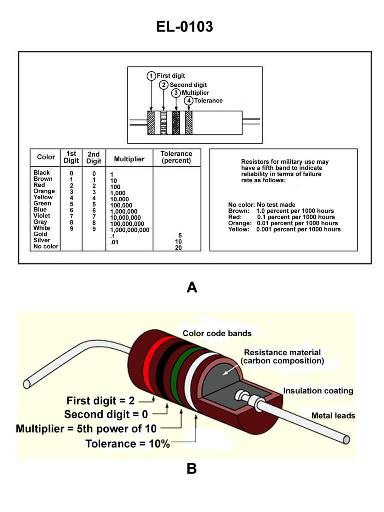

A carbon resistor has a resistance of 50 ohms, and a tolerance of 5 percent. What would be the respective colors indicated for bands 1, 2, 3 and 4 for this resistor as shown in figure "A" of the illustration? EL-0103
Official USCG Answer & Rule Citation
Correct Answer: Option B — green, black, black, and gold.
Under USCG National Maritime Center examination standards, the accepted correct answer is: green, black, black, and gold..
