Slip is the difference between synchronous speed and rotor speed. As mechanical load increases, the rotor slows down, increasing the relative speed between the stator field and rotor bars. This induces more current, creating higher torque to meet the load demand, directly linking slip percentage to the applied motor load.

Synchronous speed in an AC induction motor is determined by the formula Ns = 120f / P, where 'f' is the supply frequency and 'P' is the number of stator poles. Changing the number of poles is the primary method for altering the motor's base synchronous speed.

Applying three-phase voltage to the stator windings creates a rotating magnetic field. This field induces current in the rotor bars via electromagnetic induction. Per IEEE 45 standards, this interaction between the stator's rotating field and the rotor's induced field generates the torque necessary to drive the motor load.

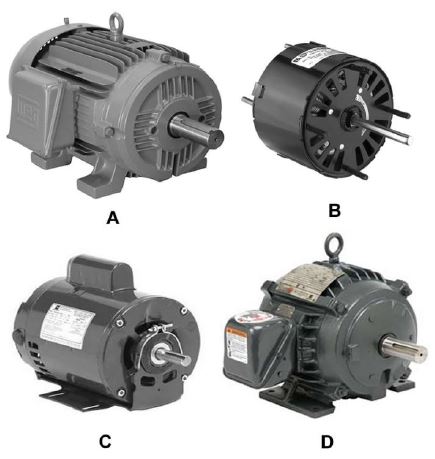

Totally Enclosed Fan-Cooled (TEFC) motors are designed to prevent the free exchange of air between the inside and outside of the case. An external shaft-mounted fan blows air over the exterior cooling fins to dissipate heat, ensuring operation in harsh, dusty, or wet marine environments per IEEE 45.

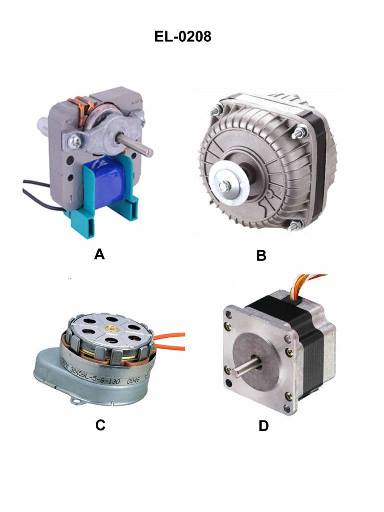

Shaded pole motors utilize a copper shading coil on a portion of the stator pole to create a phase shift, producing the rotating magnetic field required for starting. These are inherently low-torque, non-reversible, and typically found in small, fractional-horsepower applications like cooling fans or small pumps.

Temperature rise ratings on motor nameplates, as defined by NEMA and IEEE 45 standards, indicate the maximum allowable increase in winding temperature above a standard 40°C ambient temperature. This ensures the insulation system operates within its thermal design limits to prevent premature failure under full-load continuous duty.
