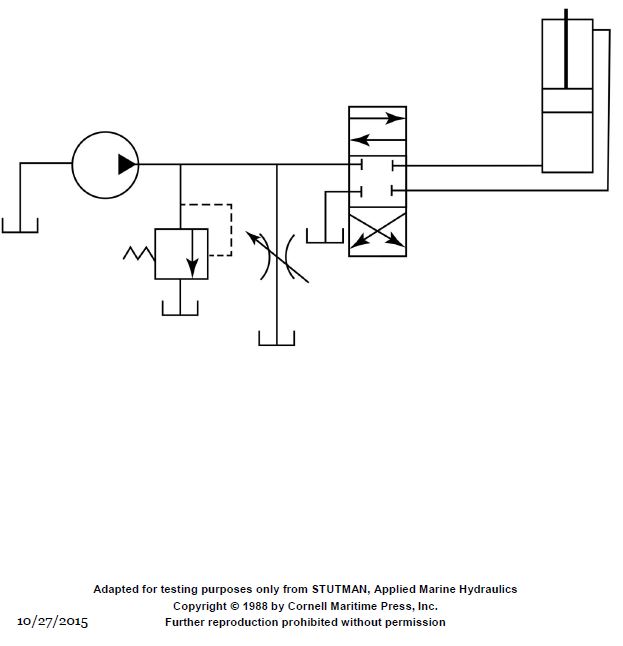

A hydraulic flow control circuit is shown in the illustration, and is known as a __________. GS-0107

Correct Answer: Option C — bleed-off circuit

A bleed-off circuit regulates actuator speed by diverting a portion of the pump's output back to the reservoir via a flow control valve. Unlike metering circuits, this method is more efficient for systems operating below maximum pressure, as it avoids forcing the entire pump flow through a restrictive valve.
