USCG Engine General (Supplementary)

Seawater is highly corrosive and prone to fouling. By circulating seawater through the tubes, maintenance is simplified, as the tube bundles can be easily removed for cleaning or replacement. The shell side, which is harder to clean, is reserved for the cleaner, non-corrosive oil or freshwater cooling media.

Cross flow occurs when one fluid flows perpendicular to the other. In a finned-coil heat exchanger, the hydraulic oil flows through the tubes while the cooling air is forced across the exterior fins at a 90-degree angle, maximizing heat transfer efficiency through increased surface area and turbulence.

A single-pass heat exchanger features inlet and outlet connections on opposite ends of the shell. This configuration forces the fluid to travel the entire length of the tube bundle exactly once before exiting, which is standard for applications requiring low pressure drop and high flow rates in marine cooling systems.

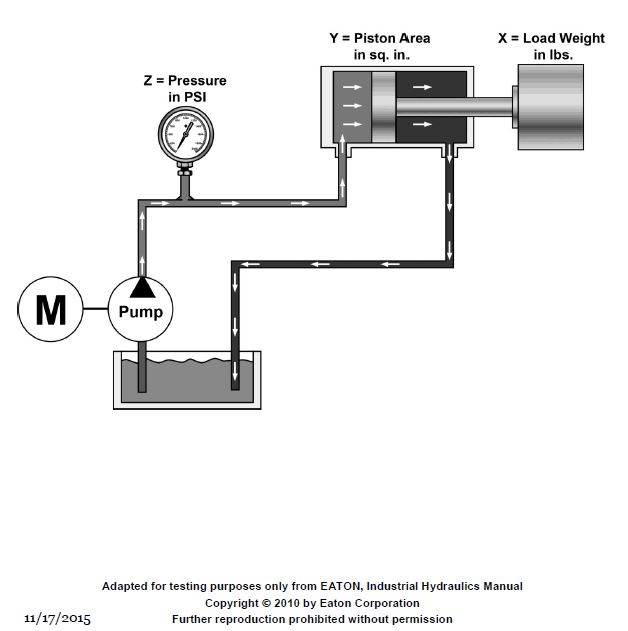

Pressure is defined as force divided by area (P = F/A). Given a load of 8,000 lbs and a piston area of 10 square inches, the calculation is 8,000 / 10, resulting in 800 psi. This fundamental hydraulic principle governs the operation of all pressurized fluid power systems aboard vessels.

In USCG Marine Engineering General Subjects, for engine room systems involving 'Which characteristic or condition will have the greatest effect on increasing a hydraulic oil's viscosity', the standard operating requirement is: 'Pressure'.

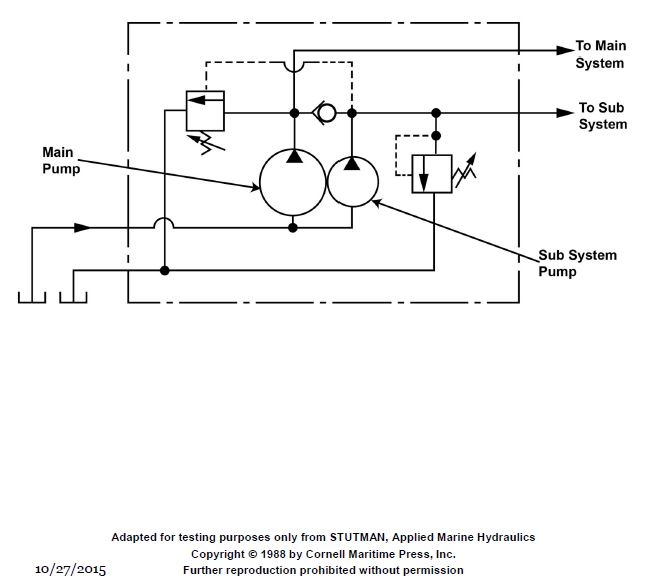

In hydraulic symbology, a combined pump unit symbol indicates two or more pump elements housed within a single casing or driven by a common shaft. This configuration is frequently utilized in marine hydraulic systems to provide multiple flow paths or pressure stages from a single prime mover.
