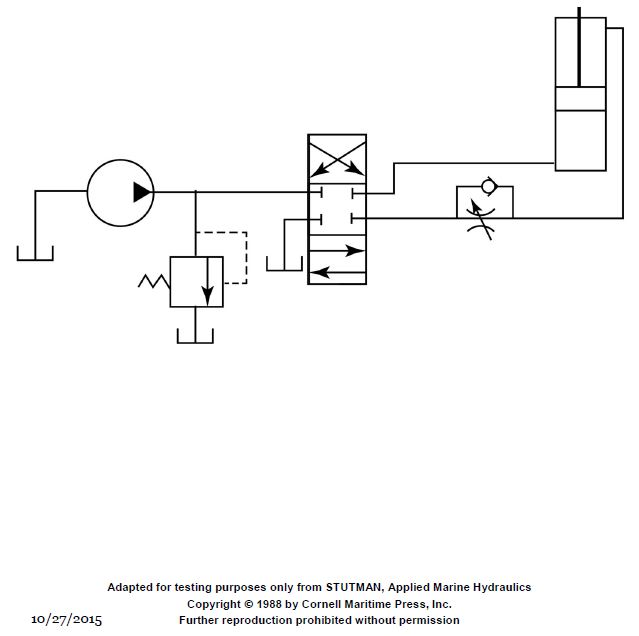

A hydraulic system flow-control circuit is shown in the illustration and is known as a __________. GS-0105
Official USCG Answer & Rule Citation
Correct Answer: Option B — metered-in circuit
A metered-in circuit controls the speed of an actuator by regulating the flow entering the cylinder. The flow control valve is placed in the supply line between the pump and the actuator. This ensures that only the required volume of fluid enters the system, providing precise control over linear speed.
