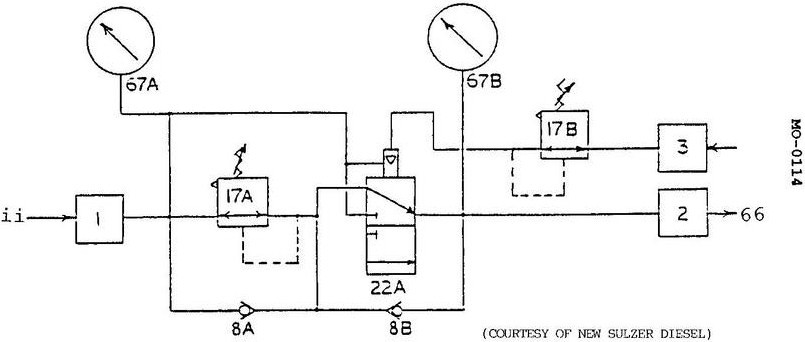

A propulsion engine, using the speed control circuit shown in the illustration, fails to function at speeds lower than the low end of the critical speed range. Which of the following statements describes what should be done to correct this malfunction? Illustration MO-0114

Correct Answer: Option B — Device 17A needs to be replaced, repaired, or reset to the set point coinciding with the RPM value for the low end of the critical speed range.

Under USCG National Maritime Center examination standards, the accepted correct answer is: Device 17A needs to be replaced, repaired, or reset to the set point coinciding with the RPM value for the low end of the critical speed range..
