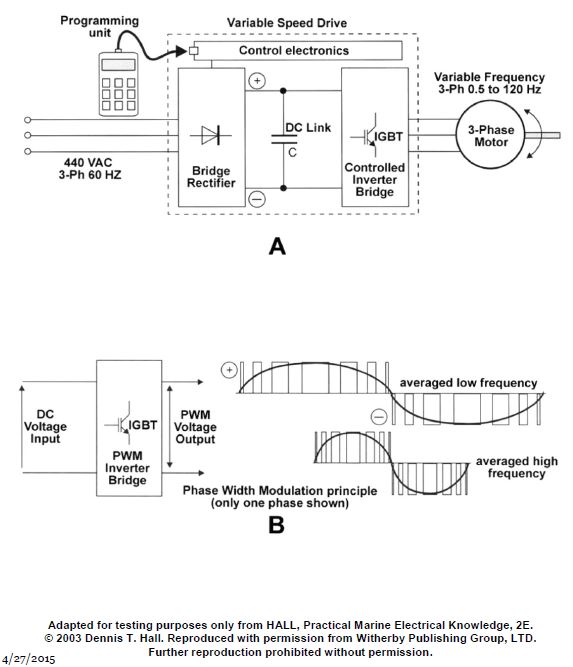

A shown in figure "A" of the illustrated propulsion motor variable speed drive, what statement is true? EL-0140

Correct Answer: Option D — the bridge rectifier is uncontrolled and the controller inverter bridge is transistor controlled in terms of switching

In this drive configuration, the bridge rectifier uses uncontrolled diodes to convert AC to DC, while the inverter bridge employs transistors (such as IGBTs) for high-speed switching. This combination allows for efficient pulse-width modulation, providing the necessary frequency and voltage control for variable speed motor operation.
