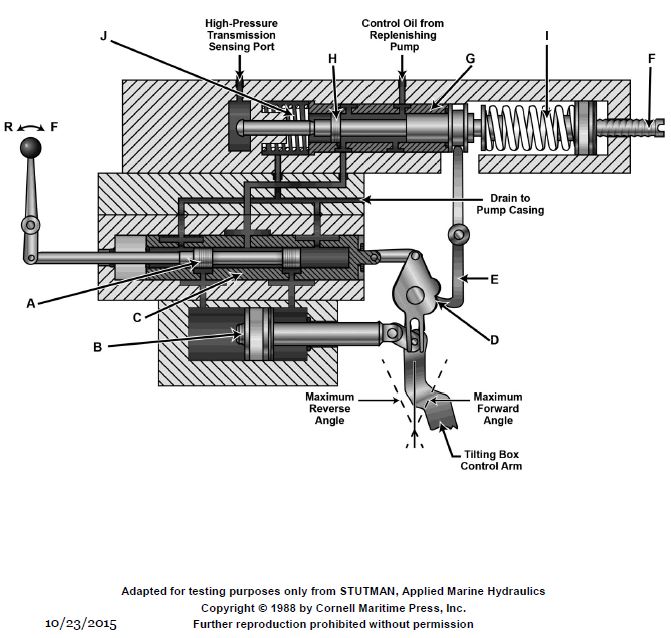

A variable displacement pump is fitted with the illustrated device, the discharge flow rate will be reduced as described by which of the following statements? Illustration GS-0040

Correct Answer: Option B — Part "H" will move to block the replenishing pump oil flow across part "G" as flow across hydraulic motor decreases.

Under USCG National Maritime Center examination standards, the accepted correct answer is: Part "H" will move to block the replenishing pump oil flow across part "G" as flow across hydraulic motor decreases..
