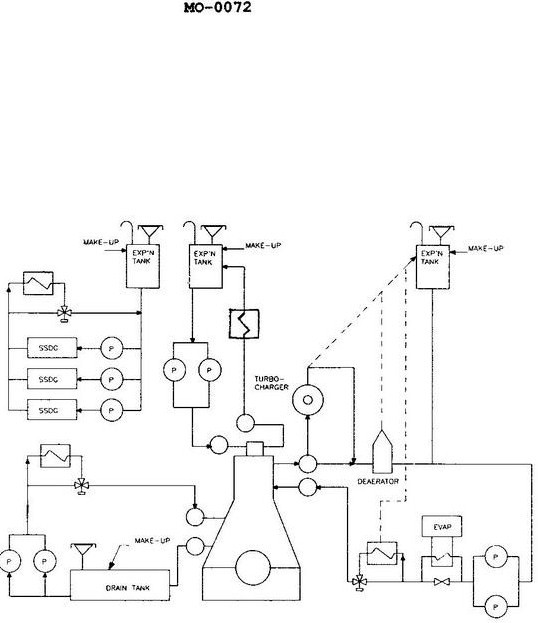

According to the illustrated diesel propulsion plant fresh water cooling systems diagram, in which subsystem is the deaerator located? Illustration MO-0072

Correct Answer: Option A — Main engine cylinder jacket cooling water system

Marine diesel closed fresh water cooling circuits integrate deaerator expansion tanks directly into the main engine cylinder jacket cooling water system to continuously vent entrapped air and maintain positive system suction head.
