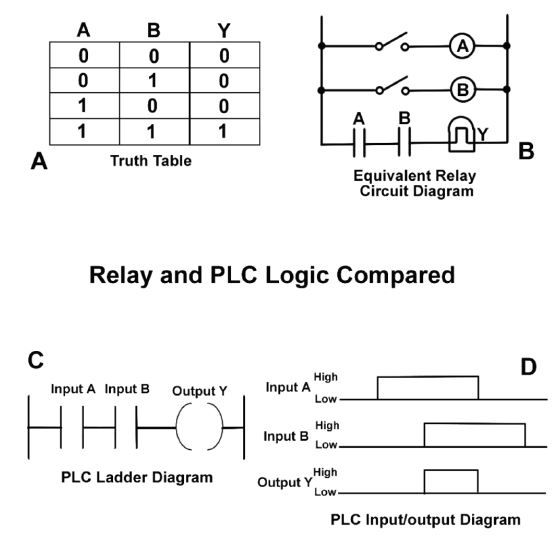

As shown in all four diagrams included in the illustration, what type of logic circuit is represented? EL-0226

Correct Answer: Option B — AND gate

An AND gate requires all inputs to be simultaneously high to produce a high output. In marine engineering control circuits, this ensures safety interlocks are fully satisfied before permitting heavy machinery startup.
