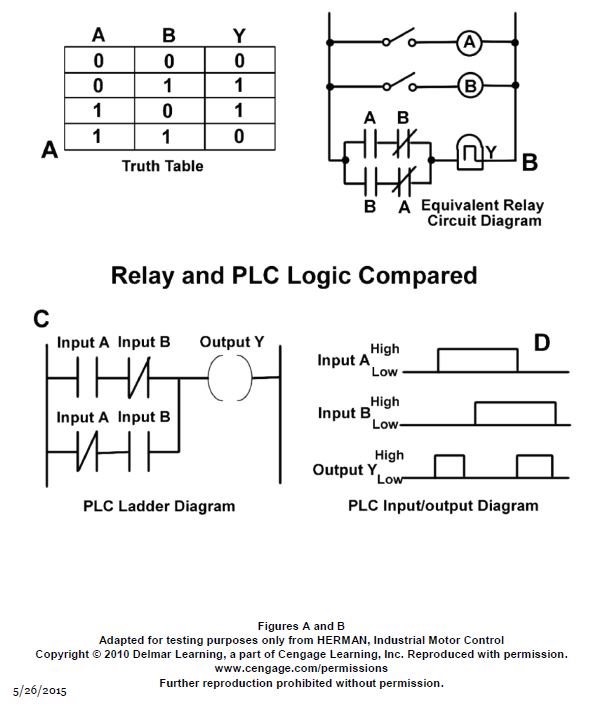

As shown in all four diagrams included in the illustration, what type of logic circuit is represented? EL-0231
Official USCG Answer & Rule Citation
Correct Answer: Option D — XOR gate
An Exclusive-OR (XOR) gate outputs a high signal only when an odd number of inputs are high, meaning inputs must be different to produce an output, as standardized in marine digital control logic.
