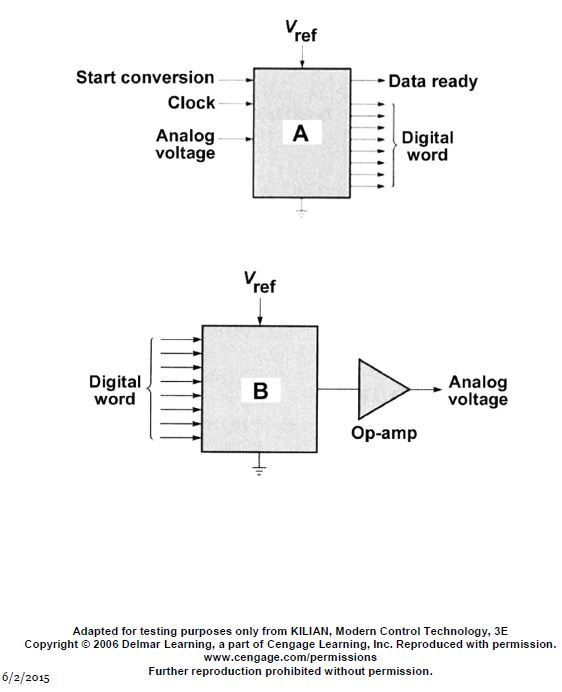

As shown in figure "A" of the illustration, what type of converter unit is represented? EL-0240

Correct Answer: Option C — analog to digital converter

The circuit shown represents an analog-to-digital converter (ADC). It samples a continuous analog voltage input and processes it through a comparator and logic network to produce a discrete binary output, which is the fundamental process for digitizing sensor data for use in modern marine control systems.
