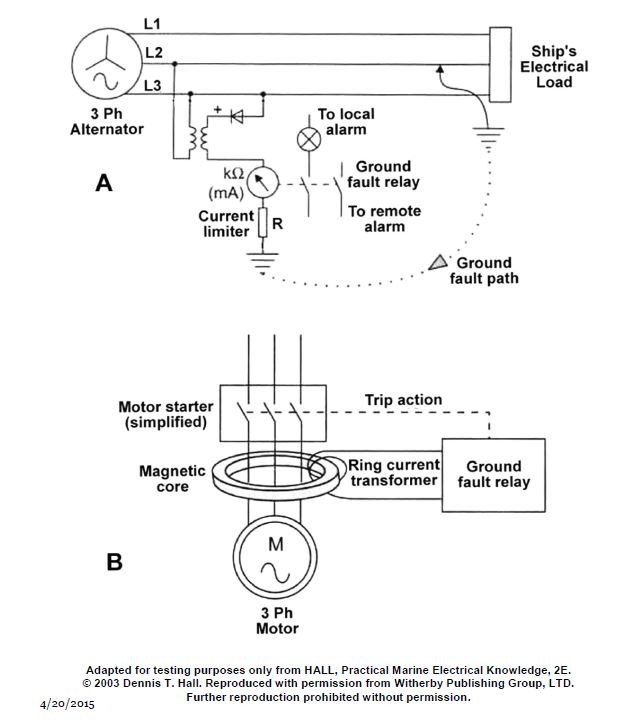

As shown in figure "A" of the illustration, what type of ground fault detection system is illustrated? EL-0132

Correct Answer: Option C — a direct current injection system

Direct current injection ground detection systems superimpose a low-magnitude DC signal across ungrounded AC distribution networks. Insulation degradation permits DC flow to hull, which is monitored by specialized sensitive relays to detect insulation failure without affecting AC power transmission.
