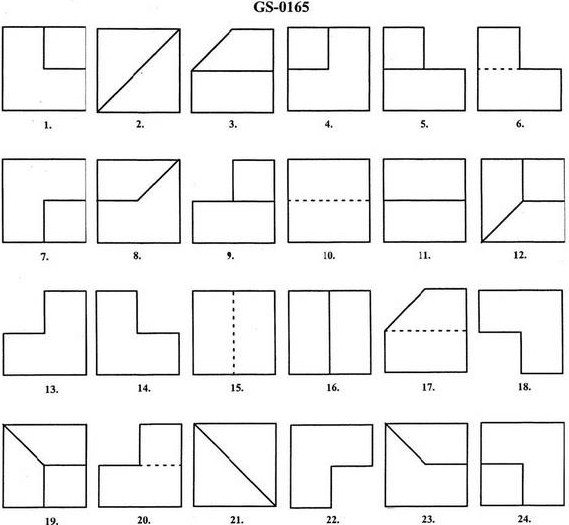

As shown in the illustration, if figure "21" indicates the "TOP VIEW" of an orthographic projection, and figure "11" indicates the "FRONT VIEW", which figure would best represent the correct "RIGHT SIDE VIEW"? GS-0165

Correct Answer: Option B — Figure "10"

In orthographic projection, the right side view is derived by projecting the object's features onto a plane to the right of the front view. Figure 10 correctly aligns with the geometry and orientation of the front and top views provided in the standard three-view drawing layout.
