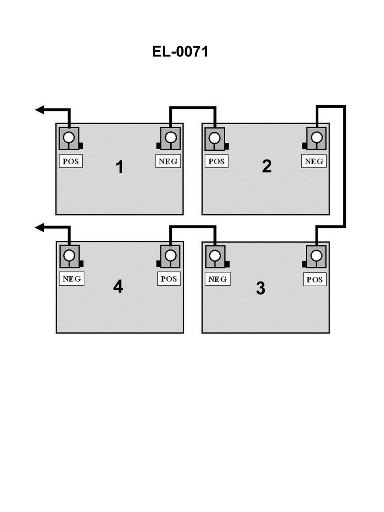

As shown in the illustration, the wet-cell storage batteries are connected in what configuration? EL-0071

Correct Answer: Option A — series

Connecting batteries in series involves linking the positive terminal of one to the negative terminal of the next, which increases the total voltage output while maintaining the same amp-hour capacity, as governed by standard electrical engineering principles outlined in IEEE 45.
