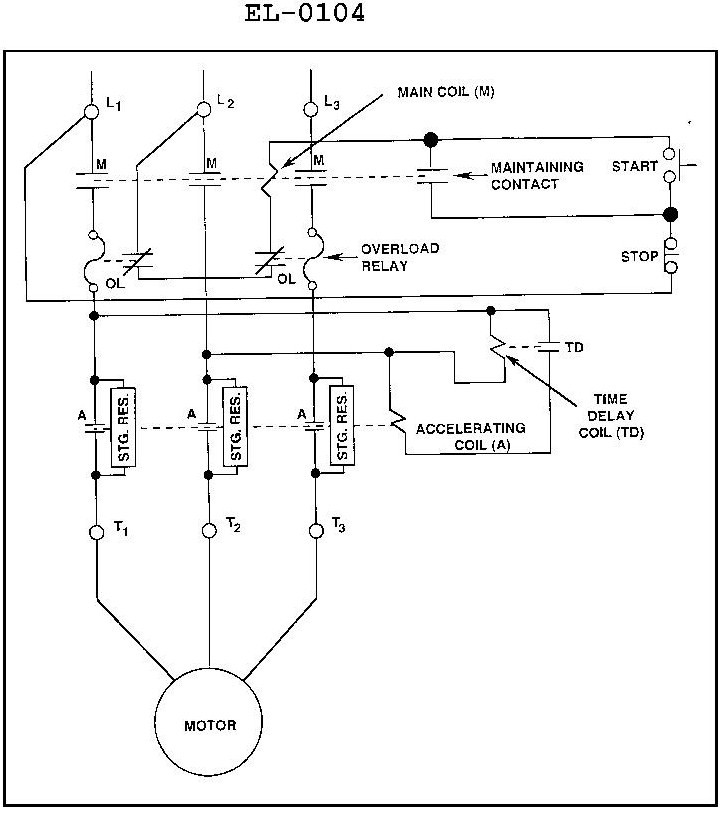

As shown in the illustration, what type of starter is illustrated? Illustration EL-0104

Correct Answer: Option A — reduced voltage primary resistance starter

Primary resistance starters insert resistors in series with the motor stator windings during initial startup to limit inrush current and reduce starting torque. After a timed acceleration period, shorting contactors bypass the resistors, applying full line voltage for normal running operation.
