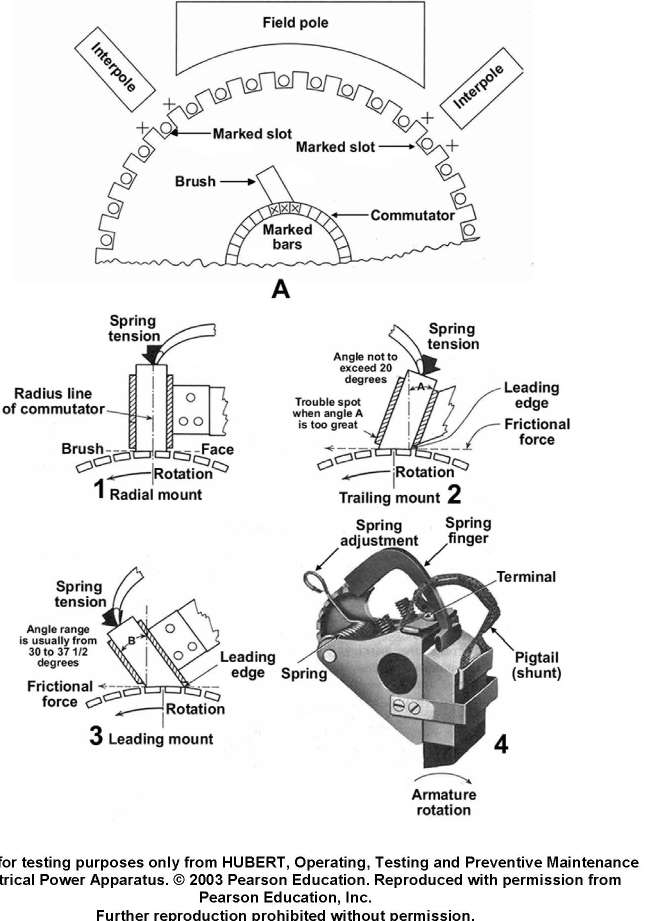

As shown in the illustration, which brush holder is of the reaction type? Illustration EL-0029

Correct Answer: Option D — 4

Reaction-type brush holders angle the brush such that the normal frictional force vector of the rotating commutator pushes the brush firmly against the trailing pressure plate, ensuring stable contact dynamics and uniform pressure distribution across varying rotational speeds per IEEE 45 standards.
