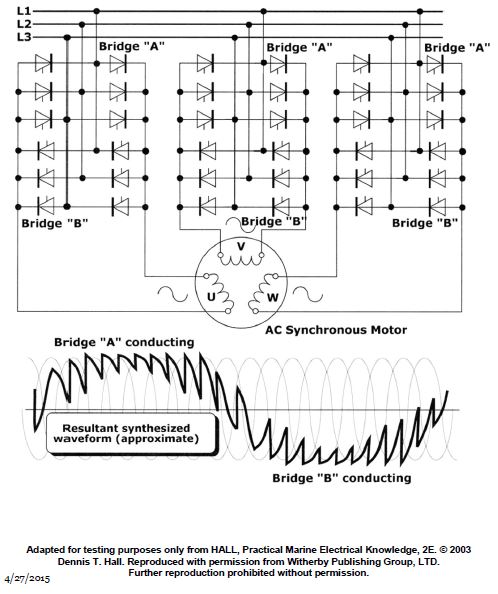

As shown the illustration of a cycloconverter for an AC synchronous propulsion motor, what statement is true concerning the operating motor frequency? EL-0157

Correct Answer: Option A — The operating motor frequency is generally limited to less than one-third of mains line frequency.

Cycloconverters synthesize an output frequency by selecting segments of the input AC waveform. To maintain acceptable harmonic distortion and waveform quality, the output frequency is physically constrained to a fraction of the supply frequency, typically limited to one-third to avoid excessive ripple and motor heating issues.
