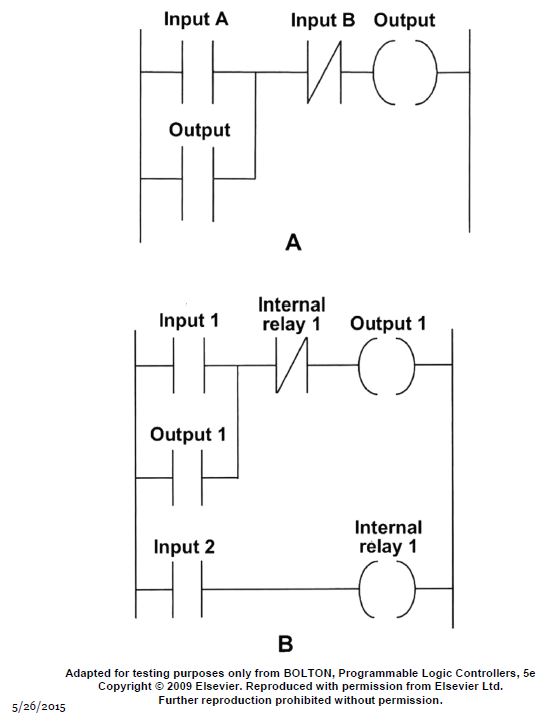

Concerning figure "A" of the illustration, if the illustrated PLC ladder diagram is for a simple motor controller, what does "Input A" represent? EL-0236

Correct Answer: Option A — normally open, momentary contact start pushbutton switch

Momentary contact pushbuttons are standard for safety control circuits, requiring deliberate manual input to start machinery. A normally open contact closes only while depressed, initiating the control sequence through holding contacts in compliance with IEEE 45 safety guidelines.
