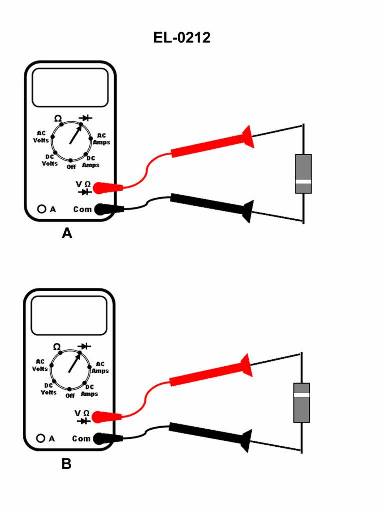

If a digital multimeter is set up as shown in figures "A" and "B" to test a silicon diode, what is the status of the diode if the screen displays OL V when configured as in figure "A" and displays OL V when configured as in figure "B"? Illustration EL-0212

Correct Answer: Option C — diode is open

When testing a silicon diode using a digital multimeter's diode test function, an open junction fails to conduct in either direction, resulting in an overload (OL V) display for both forward and reverse bias connections. This confirms a complete internal break within the semiconductor.
