Engine Plants (Supplementary) USCG Question #846 (Set 8)

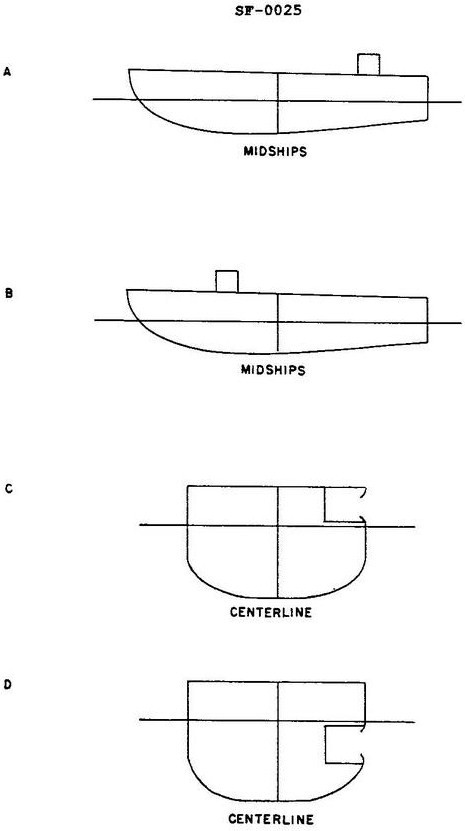

If a vessel initially has no list and no significant trim, which of the developments shown in the illustration will result in the greatest list? SF-0025

USCG Exam Illustration SF-0025
USCG Examination Diagram: Illustration SF-0025
Official USCG Answer & Rule Citation

Correct Answer: Option D — D

Transverse weight shifts cause a listing moment proportional to the weight and the transverse distance shifted. Scenario D represents the greatest off-center weight distribution combined with high vertical placement, generating the maximum heeling moment and resulting in the greatest list.
