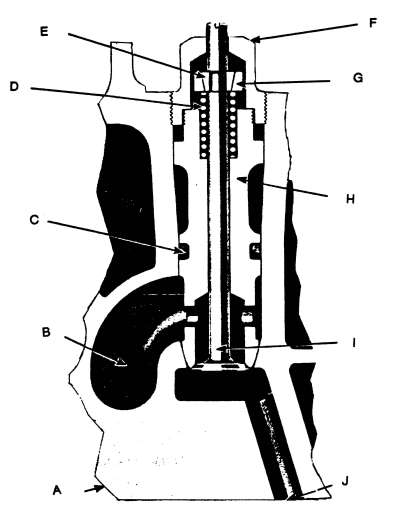

In a direct cylinder admission air starting system, once the engine begins to fire, the air starting check valve illustrated, is closed by __________. Illustration MO-0107

Correct Answer: Option B — the spring force and cylinder pressure

Direct cylinder admission starting check valves are forced shut by a combination of internal valve spring tension and rising combustion gas pressure once the fuel begins to ignite within the cylinder.
