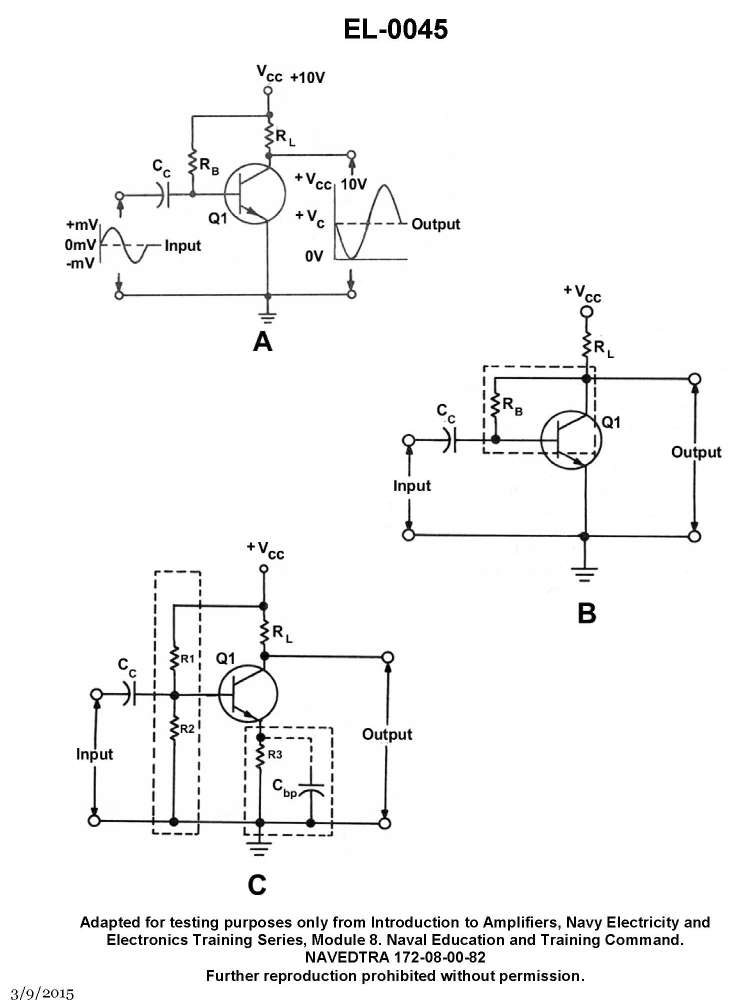

In figure "A" of the illustrated circuit, the amplifier is connected in what basic configuration? EL-0045

Correct Answer: Option B — common emitter

The common emitter configuration is identified by the input signal being applied to the base and the output taken from the collector, with the emitter serving as the common terminal. This setup provides both voltage and current gain, making it the most widely used transistor amplifier configuration.
