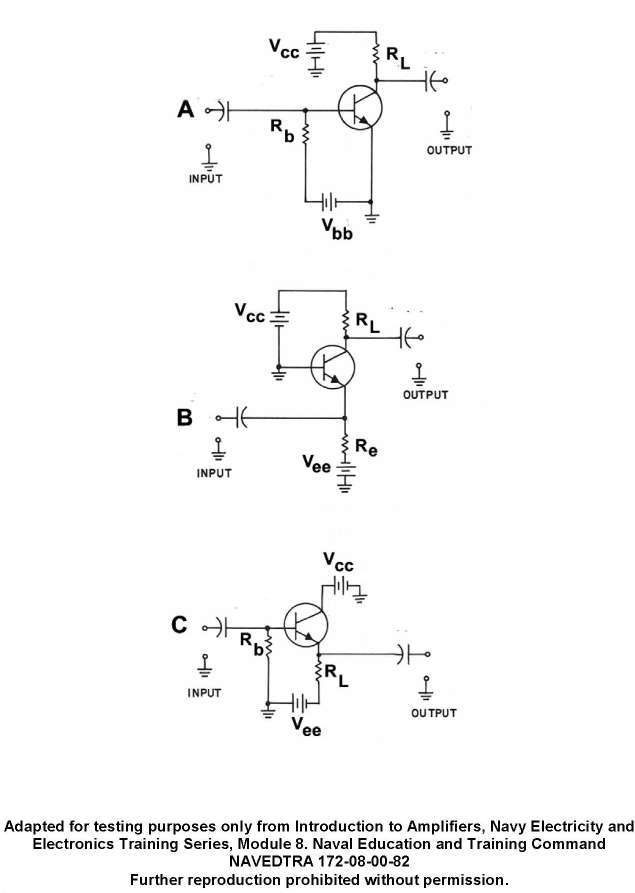

In figure "A" of the illustration, the battery Vbb and resistor Rb are in the circuit for what purpose? EL-0022

Correct Answer: Option D — to apply a forward bias to the emitter-base

In a common emitter transistor configuration, the Vbb battery and Rb resistor are specifically utilized to provide forward bias to the emitter-base junction. This bias is essential to place the transistor in its active operating region, allowing it to function as a linear amplifier for the input signal.
