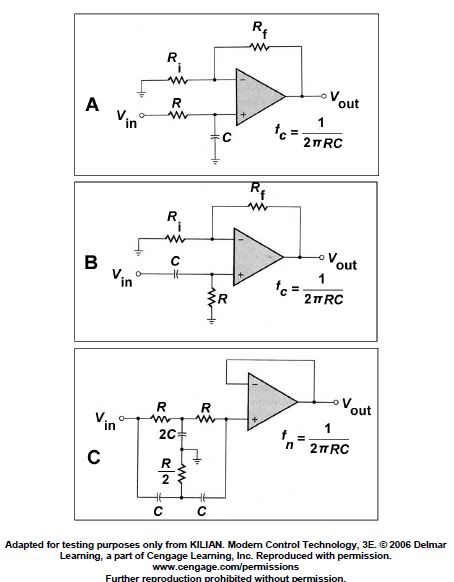

In referring to figure "A" of the illustration, what type of active filter circuit is shown? EL-0077

Correct Answer: Option A — Low-pass filter circuit

Figure A displays an active low-pass filter circuit, which utilizes operational amplifiers and RC networks to pass signals below a cutoff frequency while attenuating higher frequency components.
