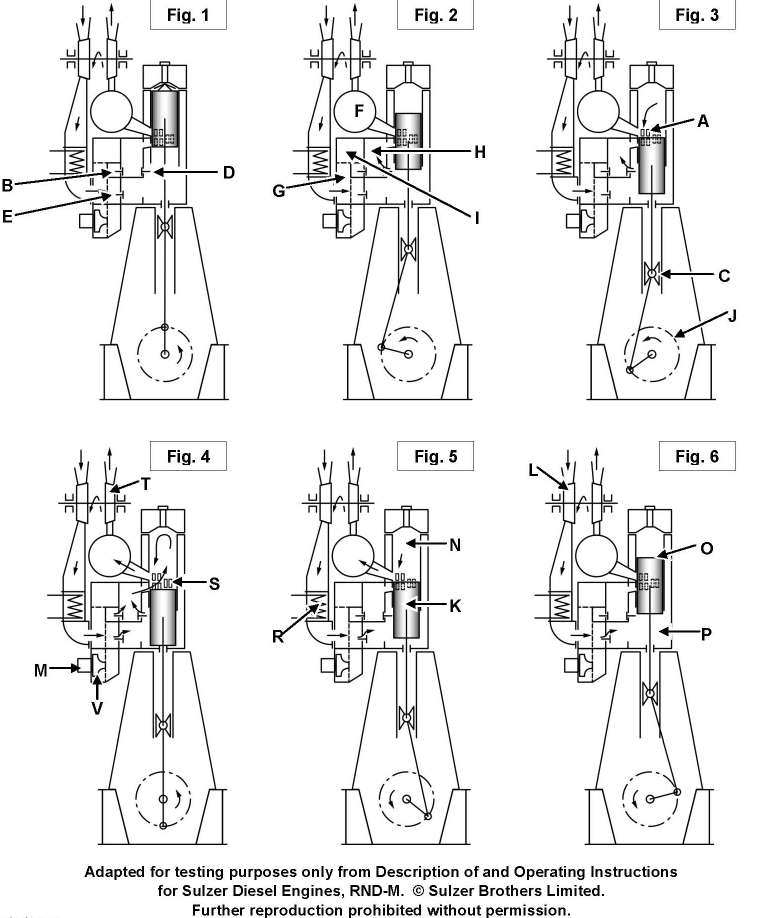

In what figure of the illustration does the crosshead experience the greatest side thrust? Illustration MO-0025

Correct Answer: Option B — Figure 2

Maximum angularity of the connecting rod occurs at mid-stroke positions during the power stroke, producing the highest lateral forces against the guide shoes. Figure 2 represents this critical crank angle where side thrust reaches its peak operating magnitude.
