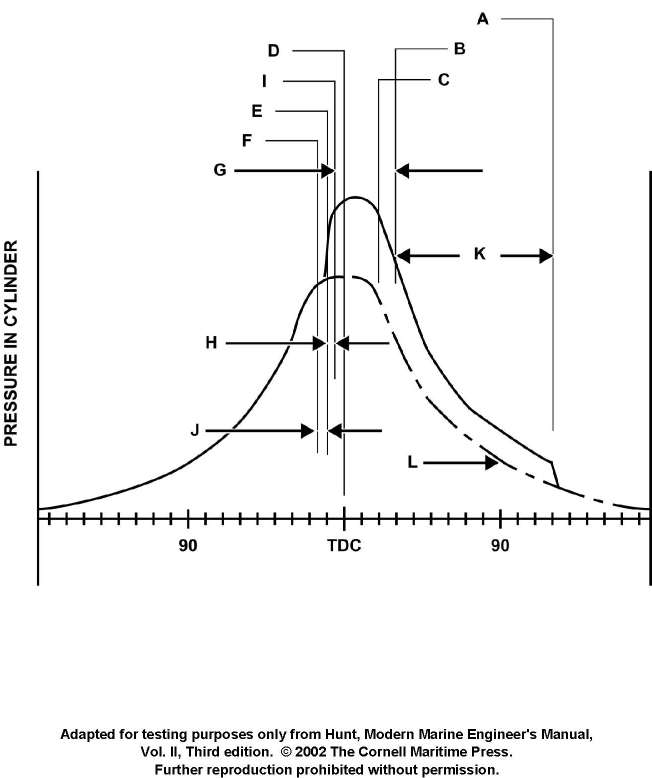

On the cylinder indicator diagram illustrated, the dotted line indicated as 'L' is describing the _________. Illustration MO-0033

Correct Answer: Option C — cylinder pressure without injection

The dotted line 'L' represents a motoring curve, which illustrates the cylinder pressure changes during a cycle without fuel injection. By comparing this curve to the actual power diagram, engineers can evaluate combustion efficiency, compression pressure, and the timing of heat release relative to the piston's position in the cylinder.
