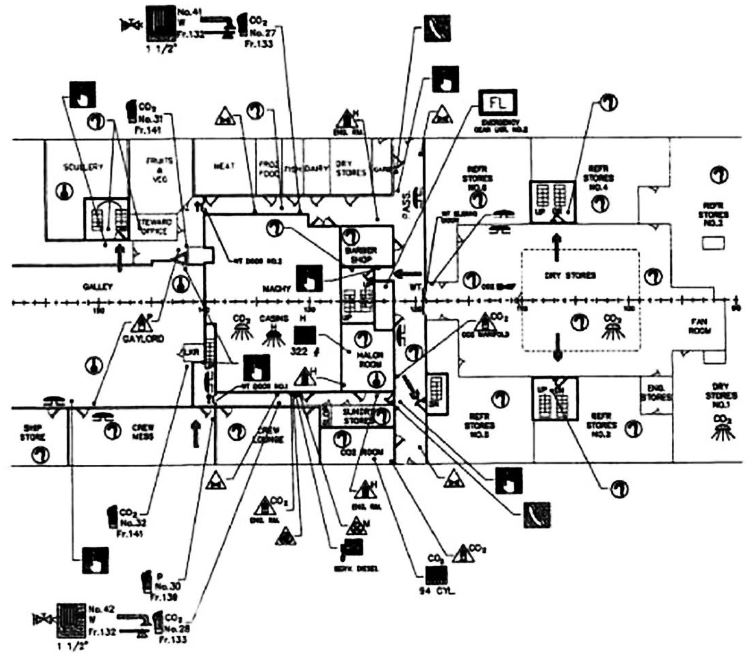

On the illustrated fire control plan, what emergency equipment is located in the scullery? Illustration SF-0045

Correct Answer: Option D — Heat detector

Consulting the fire control plan (Illustration SF-0045) for the designated scullery area reveals the specific symbol for a heat detector. These devices are critical components of the vessel's fire detection system, required by 46 CFR to provide early warning of thermal changes in high-risk galley and scullery spaces.
