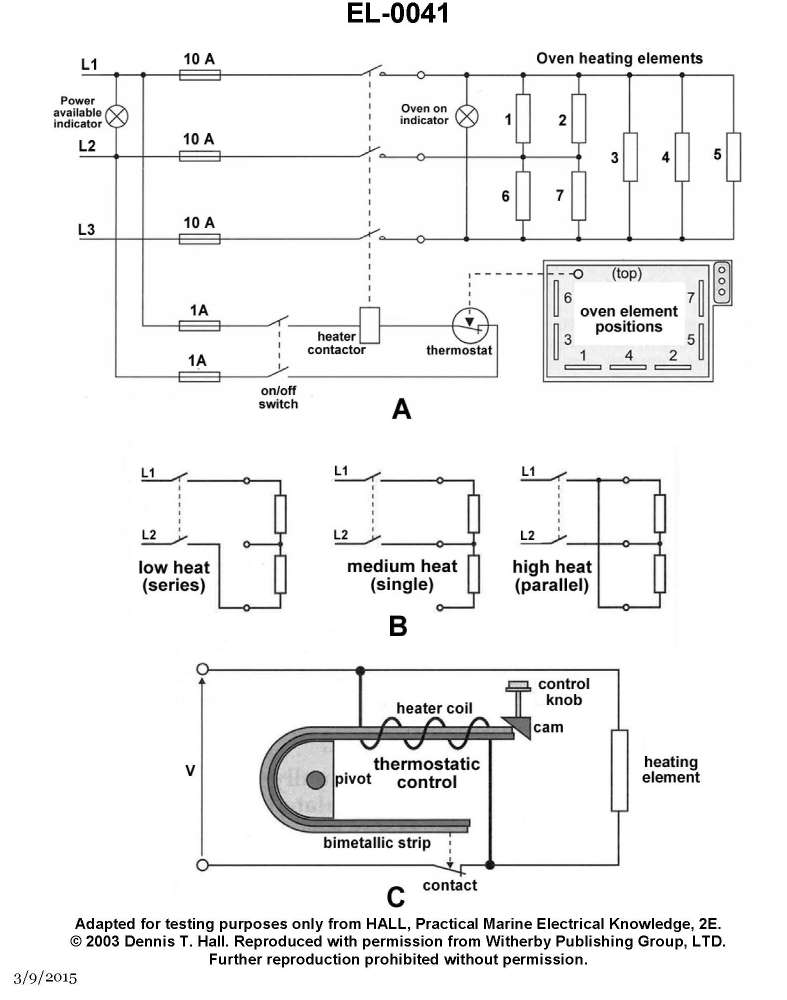

Refer to figure "A" representing an electric oven as shown in the illustration. With the oven turned on, the power available indicator light is off, the oven on indicator light is off, and only elements "6" and "7" appear to be producing heat. Which fuse is blown? EL-0041
Official USCG Answer & Rule Citation
Correct Answer: Option A — L1 10A line fuse is blown
Under USCG National Maritime Center examination standards, the accepted correct answer is: L1 10A line fuse is blown.
