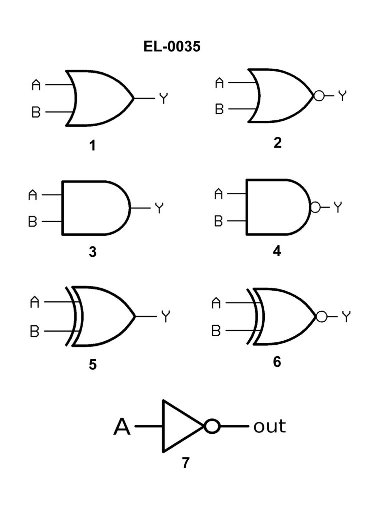

Referring to figure "2" of the illustration, what type of logic gate is symbolized? EL-0035

Correct Answer: Option C — NOR gate

The symbol featuring an OR gate shape coupled with a negation bubble at the output designates a NOR gate, yielding an inverted OR function standard in marine alarm logic schematics.
