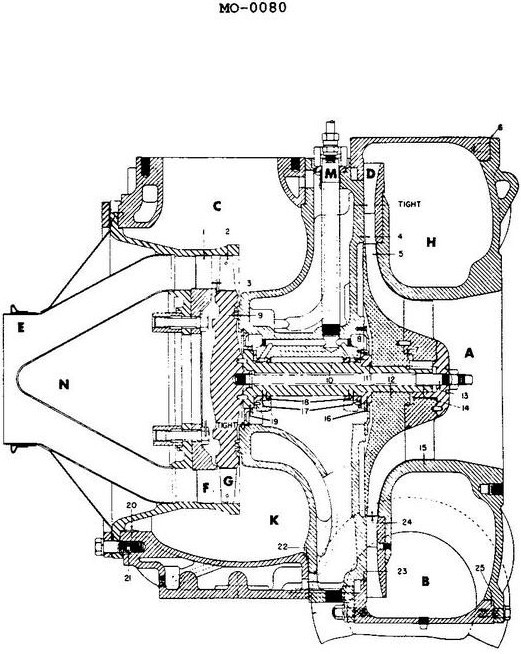

Regarding the turbocharger shown in the illustration, the part labeled "B" would be attached to the __________. Illustration MO-0080

Correct Answer: Option D — aftercooler inlet

Part 'B' on marine turbocharger diagrams denotes the compressor discharge volute, which channels high-velocity compressed air directly toward the charge air cooler or aftercooler inlet for temperature reduction before combustion.
