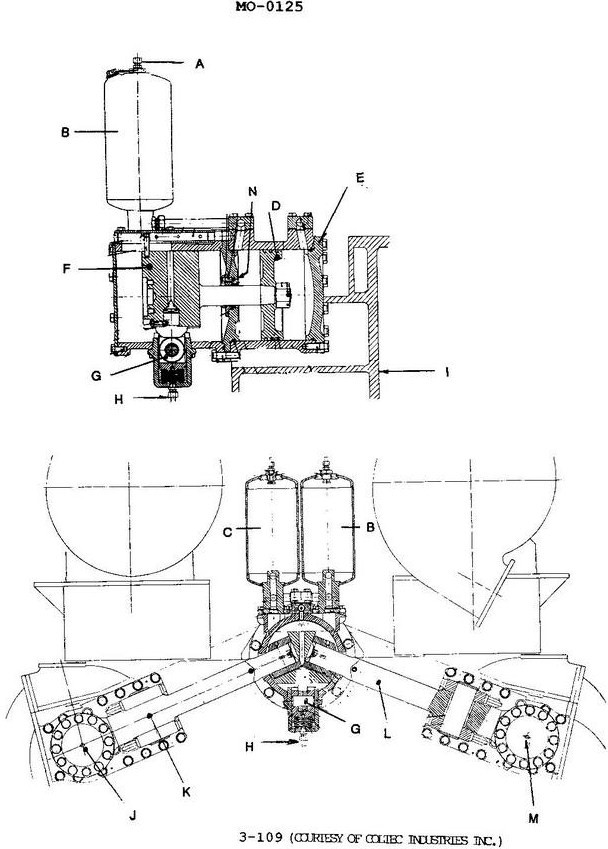

The cylinders labeled "B" and "C" in the illustration are used to __________. Illustration MO-0125
Official USCG Answer & Rule Citation
Correct Answer: Option D — supply the force required to shift the engine camshafts axially to reverse engine rotation
Hydraulic cylinders 'B' and 'C' on direct-reversing marine diesels provide the substantial linear force needed to slide the camshaft axially during the bridge or engineroom reversing maneuver.
