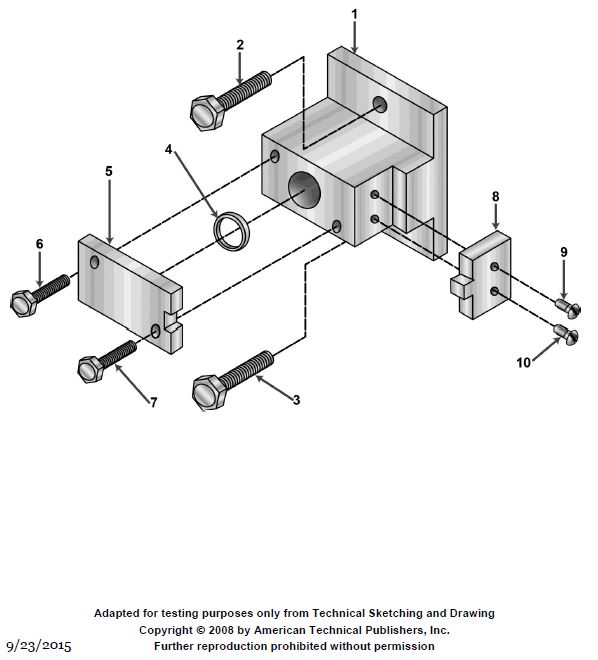

The exploded drawing shown in the illustration is intended to show the __________. GS-0025
Official USCG Answer & Rule Citation
Correct Answer: Option B — parts aligned for the correct order of reassembly
Exploded drawings display the components of an assembly separated by distance but maintained in their relative alignment. This visual aid is essential for marine engineers to understand the correct sequence for disassembly and reassembly, ensuring that all parts are installed in the proper order during maintenance.
